HPS – Revoluctionary electrical network analyzer and datalog Bestell-Nr:HPS
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!
HPS – Revoluctionary electrical network analyzer and datalogger All-in-one
HPS – High Performance System
System for data collecting and publishing with advanced web server
Features
Innovative solution, which revolutionizes the technology combining electrical network analyzer and datalogger in a single, flexible, economic and quick interface.
-
- Highly flexible system: The system can manage hundreds of sensors via 2 RS485 isolated lines, integrated in the device, as well as remote connection via Ethernet
- Simplified management system: All NG series sensors connected to the system get automatically identified and managed by the central unit
- Wide number of channels: The system is able to manage up to 1,600 measurements
- Easy setup: In addition to being configurable remotely, display and joystick allow setting and consulting main parameters without the need of a personal computer
- Automatic data export: In addition to the wide internal memory (over 10 years’ worth of data), HPS manages automatic export of measurements on all main platforms like FTP, EMAIL, DROPBOX, GOOGLE DRIVE, REMOTE WINDOWS FOLDERS and more
- Back up and restore: Both system settings and all data stored by HPS can be periodically saved on all platform mentioned above
- High connectivity: The system is able to communicate simultaneously via WI-FI and Ethernet
- Wide range of measurable physical quantities: Connecting appropriate sensors to the main system, via cable or wireless, it is possible to measure, manage and record every kind of physical quantity (electricity, water, gas, radiation etc.)
- Evolved alarm management: Unlike traditional systems, all real time measurements are managed by a single device, this allows creating complex alarms able to involve every signal combination coming from every kind of sensor
- WEB interface compatible with mobile devices: The instrument is equipped with an integrated web server for data publishing. Published pages are realized in HTML5 format and they are therefore compatible with every computer, tablet and smart phone without installing further applications
- WI-FI module with remotable aerial:The system can become a “WI-FI hotspot”, making wireless connection possible between computer, tablet or smartphone and the system’s web interface even when there’s no local WI-FI infrastructure available
Correlated Products

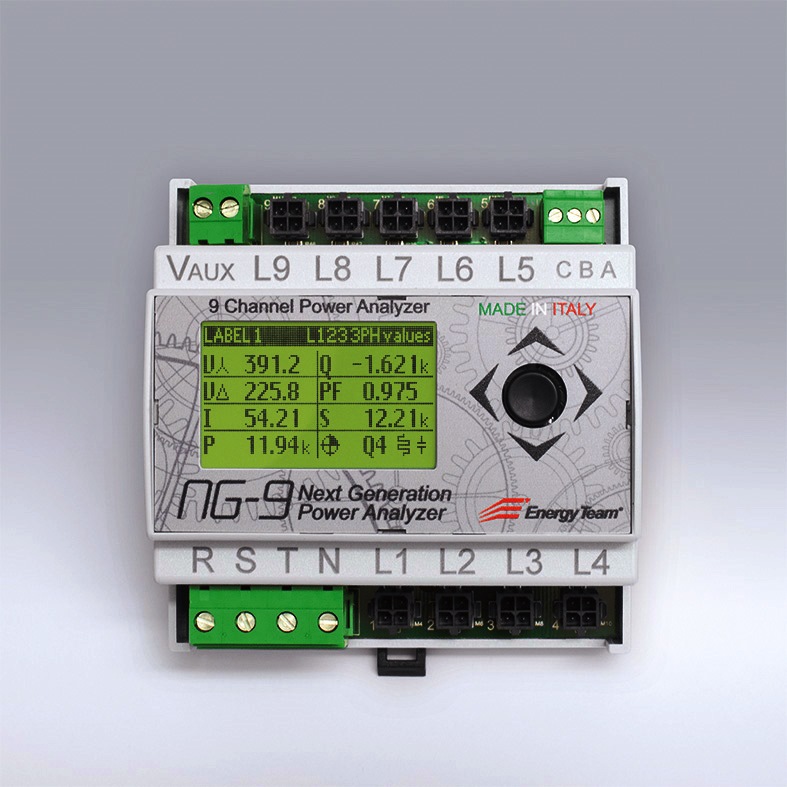

- NG-9

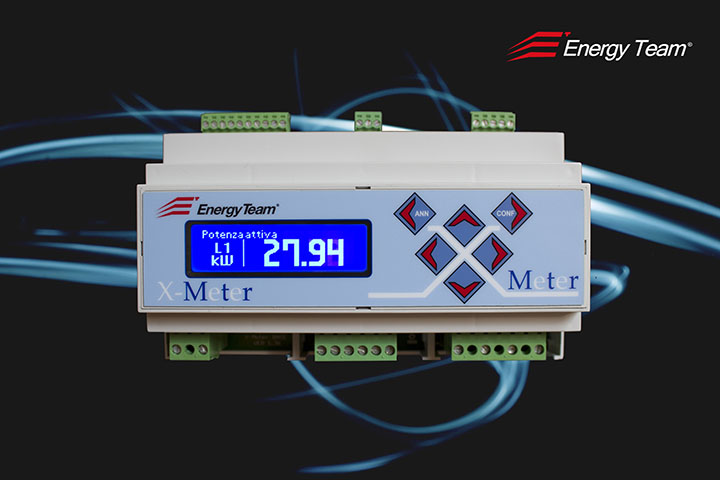

- X-Meter DIN

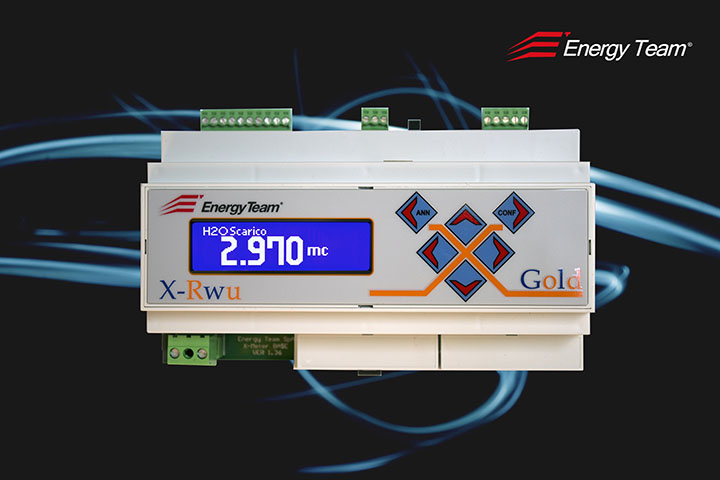

- X-RWU
