NG-9

New Generation network analyzer, 9 measured lines in a single device

New Generation network analyzer, 9 measured lines in a single device

Features

The world smallest analyzer featuring 9 channels within 9 cm, why not reduce installing time and costs by a third and multiply performances by 3?

• • • Flexibility: The special probe with range from 1 to 2000 A offers the most versatile solution available on the market
    • Accuracy: 0.5 class instrument which guarantees accuracy on the whole measurement system
    • Measurements: 160 electric parameters displayed on LCD and on your own device via RTU-Modbus
    • Versatility: High suitability thanks to the combination of split current transformer and/or Rogowski coil for single-phase, three-phase or shuffled mode
    • Simplicity: The time and costs are reduced by 85%, no shutdowns

It does not exist anything like our NG-9 to compare to.

• • • No plant shutdowns
    • Modbus RTU communication speed 3 times faster than other analyzers: 115200 baud rate
    • Possibility of using all range of Rogowski Coils or Split Current Sensors on each instrument on either single, three or mixed phase mode
    • Easily fits in pre-existing panels
    • Connection to 1 voltmeter instead of 3
    • Extensions allow up to 10 m distance from the device
    • Reduced installation errors to allow a simple and correct start up
    • Each current sensor can be connected to the device with a one-way electrical connector without using additional cables, scissors and screwdrivers
    • Power consumption 12 times less than any other device on the market. i.e. : NG-9 €21/10 years, other devices €252/10years
    • NG software set up that permits simple and fast programming
    • NG-9 has many different fields of application: office buildings, wharehouses, retail centres, small and large factories. It is particularly suitable for data centres’ energy cost distribution

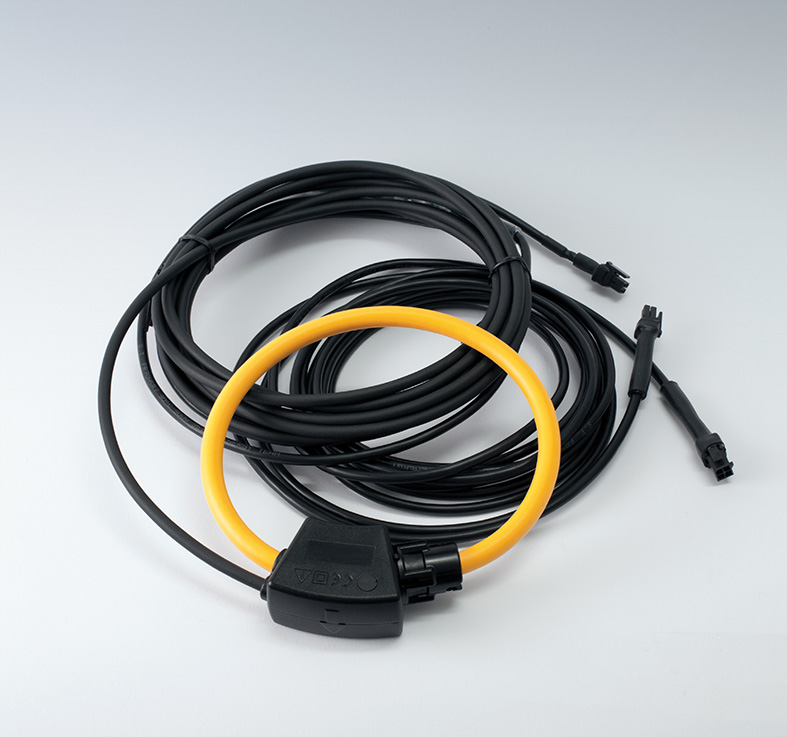

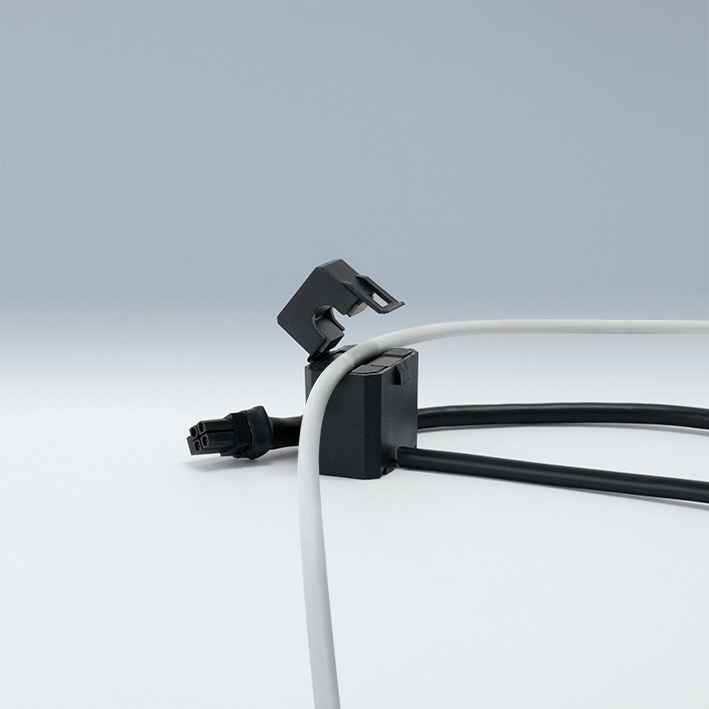

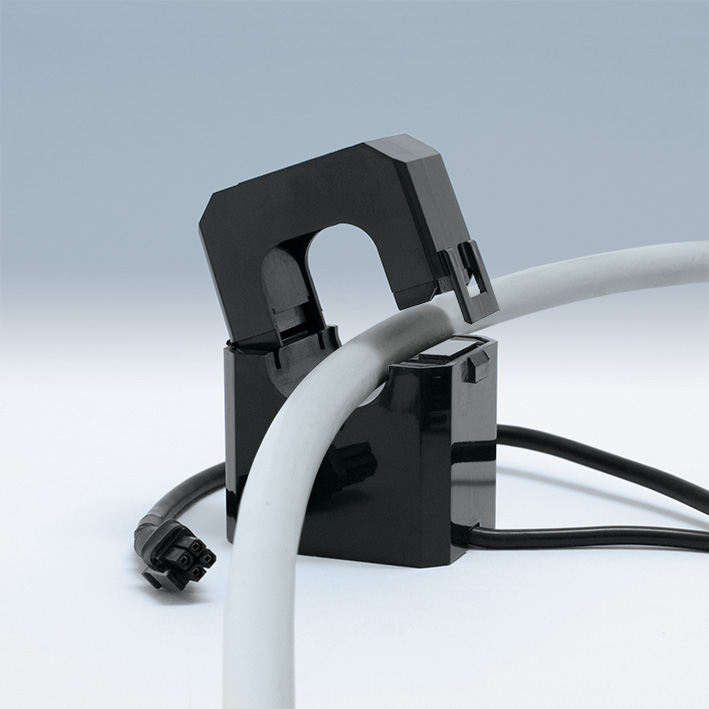

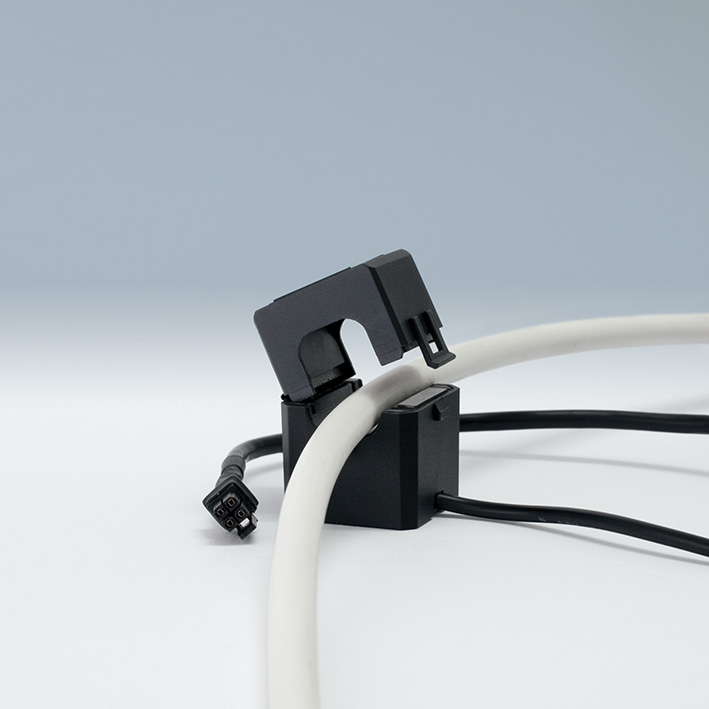

Sensors available
