X-Meter 96C

Electrical Network Analyzer for switchboard Color Display Touchscreen.

It supports all methods of measurement Existing Currents

Specifications

• Bi-directional meter (Imported/delivered energy)
• 50 Measurements in true value (RMS) on 4 quadrants
• The case 96×96 can be embedded on Standard panel, depth:65 mm (80 mm including modules ).
• Graphic display: 3.5” LCD TFT, 320x240pixel, 262k colors, with resistive touchscreen, for a clear and readable displaying of measurements.
• Graphic displaying of voltage, Current, Power and COSφ of last 3 days.
• 12 Power Totalizers on 4 quadrants that can be set to zero through request of confirmation
• Indication in € for absorbed and delivered Energy
• Software TA and TV inversion function
• Temperature probe inside the instrument

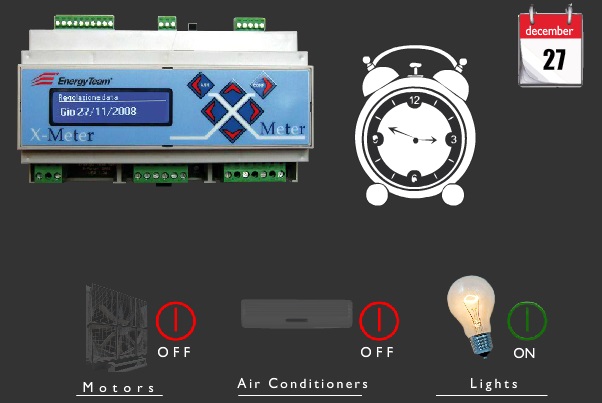

• Clock and calendar
• Optional module provided by 4 Open-collector Inputs and 2 Cleancontact Outputs, Optomos ( with independent references mass)
• Different current measurement modules available:
  • with 5A TA
  • with Rogowski probe, range of measurement: from 10 to 2000 A, Ø 100 mm
  • with 1V TA Calmp ON, Øint: 24 mm, until 200A
• Serial port: RS485
• Protocol: Modbus and ETPRO.

Optional modules currently available

• • Module for Current measurement 5A max (through TA)
  • Module for Current measurement 125÷2000A (through Rogowski probe)
  • Module for Current measurement TA 1V, Clamp ON
  • Module I/O: 4 Open-collector Inputs + 2 Optomos Outputs (clean contact), with independent references mass

Available Options

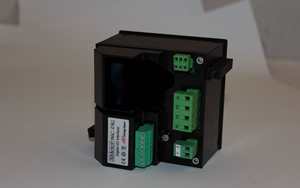

• 96C-TA5 – Current Interface

Currents Measurement Module: 3 inputs max 5A for current transformers connection..

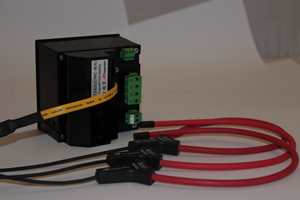

• 96C-ROG – Rogowski Coil Interface

Currents Measurement Module for Rogowski probes connection: range 125-250-500-1000-2000A selectable through keyboard, measurement chain accuracy (analyzer + Rogowski probe): class 1.

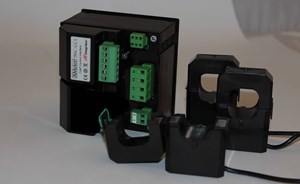

• 96C-CC1 – 1Veff Current Interface

Currents Measurement Module for 3 Split Core Current Transformers connection diameter 24mm with output 1V and with fix range from 25 to 200A, measurement chain accuracy (analyzer + probe): class 1.

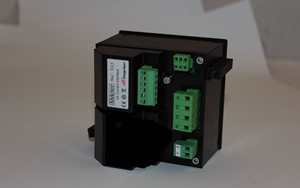

• 96C-DIG – Digital I/O Interface

I/O Module 4 – open collector active inputs for clean contacts + 2 Optomos outputs 24Vac or dc max 100mA, with independent ground references.

• XM1 – Memory Extension and Communication

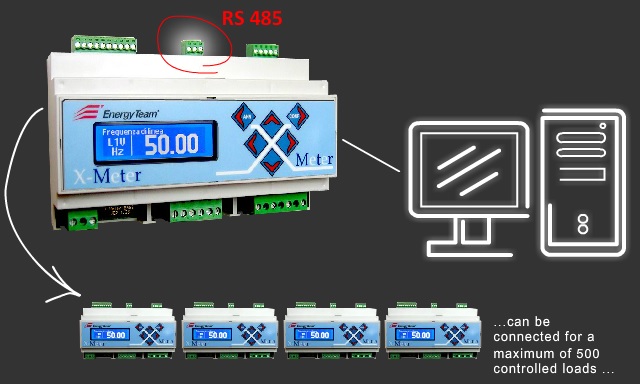

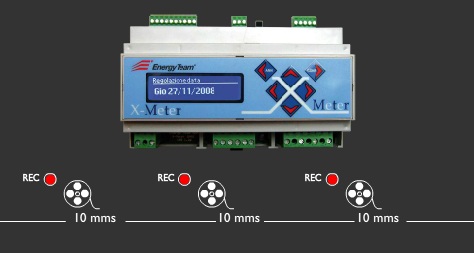

For interfacing the device to Es3 software it’s necessary to enable this function. This option allows a considerable increase in the storage capacity, thus allowing the device to record all the measured values by the instrument and to extend the memory capacity of the recordable days, up to a historical archive of 250 days (Integration time of 15’ for the following values: line voltage and phase voltage, three-phase line current, three-phase active power, three-phase reactive power, three-phase power factor). In addition, by enabling the communication port RS485 through which it is possible to use Personal Computer by means of BRIDGE module (not included), it is possible to connect a series of Energy Team’s devices.

aaa



• XM11 – Room temperature and humidity Module

It allows to acquire the room temperature and humidity and to transfer it to X-Meter’s inputs, allowing the displaying and storage of detected temperatures and humidity.
