The advantages are clear

The cost is comparable to any other simple multifunction device but it has better initial features (graphic display, pulsed outputs for power taken, short storage of consumption levels in log) plus it can be transformed into a true Power Quality instrument without having to replace it. Create your X-Meter whenever and however you want. Check the list for all of the possible options.

• Bidirectional Meter (Imported/delivered power)
• 50 true measurements
• Measurements in true value (true RMS)
• Measurements on 4 quadrants
• Graphic display, size of characters can be set
• Full and clear indications of measurements
• 6-key keyboard with buzzer
• Configurable pulsed outputs of all measured quantities
• Configurable alarm outputs of measured quantities
• Graphic display of Voltage, Current, Power and COSƒ for the last 3 days
• 12 Power Totalizators on 4 quadrants that can be reset using a password
• Indication in Euros of absorbed and delivered power
• Clock and Calendar
• Container of DIN rail 46277 (9 modules)
• Removable clamps to make installation easier
• Temperature probe inside the instrument
• Software TA and TV inversion function
• Expansion and modularity (memory, digital inputs, GSM/GPRS modem, Ethernet, e-mail, quality of supply)

Available Options

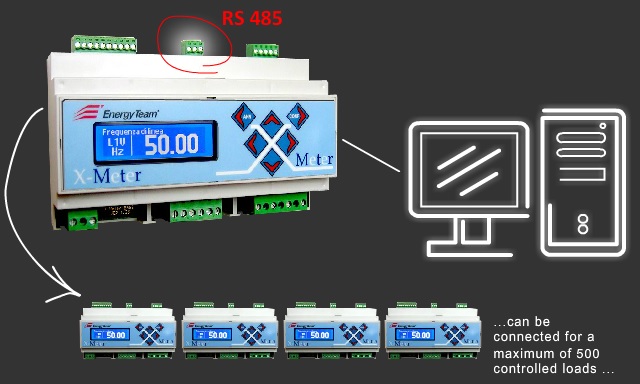

• XM1 – Memory Extension and Communication

To interface the device to the Es3 software, it is necessary to enable this function. This option allows for a considerable increase in storage capacity, allowing the device to record all of the values measured by the instrument and to extend the memory capacity of the recordable days, up to an archive of 250 days. (Integration time of 15′ for the following values: line voltage and phase voltage, three-phase line current, three-phase active power, three-phase reactive power, three-phase power factor). Furthermore, by enabling the RS485 communication port through which it is possible to use a Personal Computer through a BRIDGE module (not included), it is possible to connect a series of EnergyTeam devices.

aaa

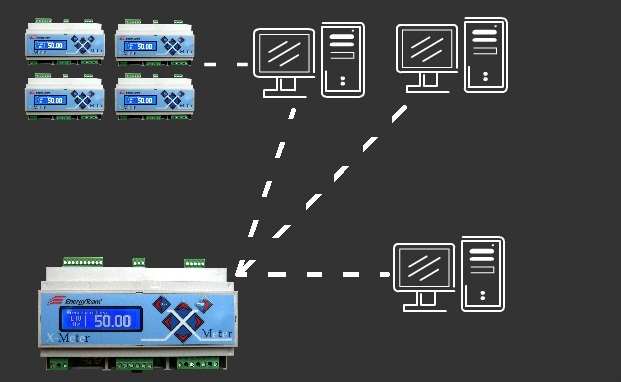

• XM4 – GSM/GPRS Module meter

The GSM/GPRS modem inside the X-Meter device allows for the sending of emails and SMS associated with conditions and alarms coming from the “field”, connected with the XM3 function (Module 8 digital inputs). Furthermore, thanks to this module, it is possible to control the X-Meter device remotely for the online data publication service through our website, www.energyteam.it. Our site can be accessed at anytime, anywhere with a userid and password. The displayed data can also be converted into Excel and Access format and downloaded to your PC. This function is possible with at least the XM1 function enabled..



aaaa

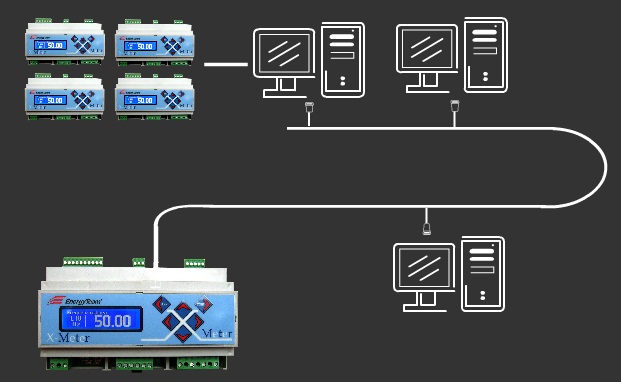

• XM5 – Ethernet Module

The Ethernet card inside the device allows X-Meter to be connected to the corporate Ethernet or intranet from various data collection and monitoring stations through a simple IP address. This function is possible only with the XM1 functions and Es3 software enabled.



aa
