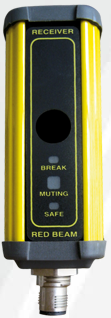

EJHTBUM3 - 60mt - Espe Type 2 - Basic



Safety light curtain, protection category 2 with relay output to separate contact. Reduced-size model. Thanks to the relay and the built-in CPU inside the barrier there is no need for additional external modules additional. Model conforms to current standards in force european and international

Conformity:

- 2006/42/EC Machinery Directive.
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- IEC/EN 61496-1 and. 2.1 And IEC/TS 61496-2 and. 2 Devices electrosensitive protective.
- EN ISO 13849-1 Safety of machinery - related parts of control systems security - general principles for the design.
- IEC/EN 62061 functional safety of electrical systems, electronic, and programmable electronic for the control systems of the machines.
- IEC 61508 functional safety of electrical systems and electronic programmable electronic security systems.

Technical features:

-Power: 24Vdc ± 20%
-Absorption: 0.4 mA Max
-Operating Temperature: -10 °C to +60 °C
- the degree of protection:level 2
- maximum capacity: from 17m to 60m
- Automatic Operation
-1 relay output with NO separate contact
-muting function
-Function of In-Test
-Function to restart
-Led signalling barrier status
-connection to connectors M12 5/8 Poly
-response time: >50ms
- the degree of protection IP65 Resolution

Rays of protection:

- resolution 1,2,3,4,5 rays for detecting the presence of the body area


Useful heights available:

- 80 mm              - 900 mm             - 1650 mm
- 300 mm            - 1050 mm            - 1800 mm
- 450 mm            - 1200 mm            - 1950 mm
- 600 mm            - 1350 mm
- 750 mm            - 1500 mm

Ideal for protecting:

- robotic Areas
- assembly lines
- palletizers
