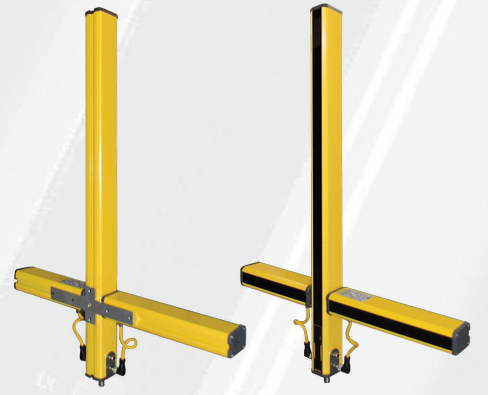

EJHTBV5 - 3mt - Espe Type 4 - Full Optional



Safety light curtain, protection category 4, with a display for signalling the operating state, graduated scale led for centering and viewing of the spokes connected or not, with a double outlet of PNP type reported to 24 Vdc.
Model full optional available with all functions: muting, override, control EDM, Restart, in-Test and programming CPU.

Conformity:

- 2006/42/EC Machinery Directive.
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- IEC/EN 61496-1 and. 2.1 And IEC/TS 61496-2 and. 2 Devices electrosensitive protective.
- EN ISO 13849-1 Safety of machinery - related parts of control systems security - general principles for the design.
- IEC/EN 62061 functional safety of electrical systems, electronic, and programmable electronic for the control systems of the machines.
- IEC 61508 functional safety of electrical systems and electronic programmable electronic security systems.

Technical Features:

-Power: 24Vdc ± 20%
-Absorption: 0.4 mA Max
-Operating Temperature: -10 °C to +60 °C
-The degree of protection: level 4
- maximum capacity: 0.1m to 3m
-3 methods of operation: Automatico-Semiautomatico -Manual
-2 outputs of PNP type referring to 24 Vdc
-Muting function selectable from CPU
-Function to Override
-Function of EDM (status check external contactors)
-Function of In-Test
-Function to restart
-Programming Function Display
-Output controlled for lamp signalling of Muting active
-Output controlled for signalling lamp status
-10 segment display for the signaling and functional diagnosis
-Bar led for centering and the state of reception of the beams
-Led signalling barrier status
-Connection to connectors M23 16/12 Poly
-Response time: >30ms
-The degree of protection IP65

Available in 6 combinations:

-HTBV5 - xxyy 2LX : Version to L with two sensors crossed
-HTBV5 - xxyy 2LI : Version to L with two sensors parallel
-HTBV5 - xxyy 2TX : T version with two sensors crossed
-HTBV5 - xxyy 4TX : T version with four sensors crossed
-HTBV5 - xxyy 4TI : Version to L with four sensors parallel
-HTBV5 - xxyy I : Version for the management of external sensors

With xx indicates the height barrier.
With yy denotes the resolution of the barrier.

Ray Resolution protection:

- Resolution 1,2,3,4 radii for the detection of the presence of the body in area

Useful heights available:

- 150 mm            - 900 mm              - 1650 mm
- 300 mm            - 1050 mm            - 1800 mm
- 450 mm            - 1200 mm            - 1950 mm
- 600 mm            - 1350 mm
- 750 mm            - 1500 mm

Ideal for the protection of:

-Palletizers
-Robotic Areas
-Assembly lines and assemble
-Automated warehouses industrial
-Gates crossed by automatically guided vehicle AGV
