Relay single safety EJHAC03 Bestell-Nr:EJHAC03
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!

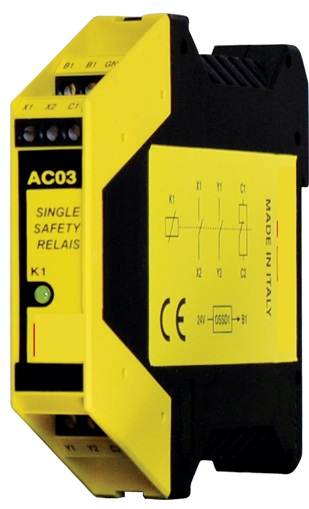

Relay single safety EJHAC03
Safety Relay class level 2, allows you to connect the barriers Red Beam to the actuator final, thus providing an additional level of protection.
Conformity:
-
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- EN ISO 13849-1 Safety of machinery - related parts of control systems security - general principles for the design.
Technical Features:
-Safety Category 2
-N°2 outputs N. O.
-N°1 outputs N. C.
-24Vdc supply ± 20%
-Absorption 0.4 A max
-Forced guide Contacts
-Duration mec. 10 Million of maneuvers
-Electrical life 100 thousand maneuvers
-Maximum output current of 6A DC/AC
-Maximum operating voltage 30VDC - 240Vac
-Nominal conditions 6A at 250Vac - 6A at 30Vdc
-Temperature functional -10° +60 °C
-Degree of covers atand IP20
-Automatic resetting
