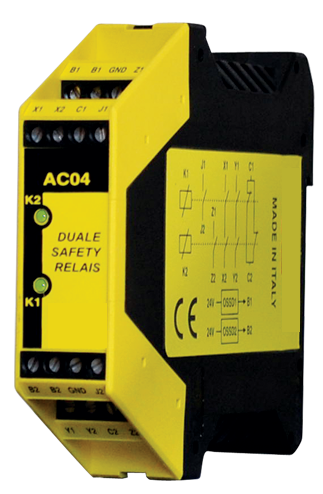

Double Relay safety EJHAC04



Safety Relay class level 4, allows you to connect the barriers Red Beam to the actuator final, thus providing an additional level of protection.

Conformity:

- 2006/42/EC Machinery Directive.
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- EN ISO 13849-1 Safety of machinery - related parts of control systems security - general principles for the design.


Technical Features:

-Safety Category 4
-N°2 outputs N. O.
-N°1 outputs N. C.
-24Vdc supply ± 20%
-Absorption 0.4 A max
-Forced guide Contacts
-Duration mec. 10 Million of maneuvers
-Electrical life 100 thousand maneuvers
-Maximum output current of 6A DC/AC
-Maximum operating voltage 30VDC - 240Vac
-Nominal conditions 6A at 250Vac - 6A at 30Vdc
-Temperature functional -10° +60 °C
-Degree of covers atand IP20
-Automatic resetting
