63mm直径绝对值编码器 Bestell-Nr:
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!
63 mm diameters series
SA063 - 63 mm diameter series - Square flange
- Flange type: Square flange
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Servo mounting
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Screw mounting, 3 holes at 120° on Ø 20 mm
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Hollow shaft
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 - 14 - 15 mm
- IP protection: IP54 - IP65 - IP67

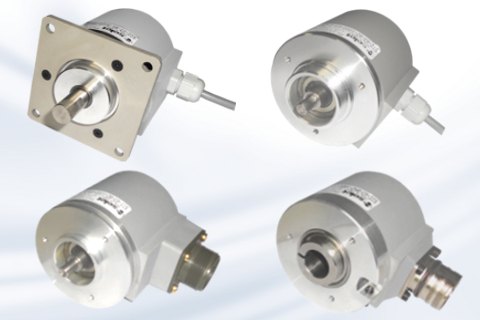

63 mm diameters series
SA063 - 63 mm diameter series - Square flange
SA163 - 63 mm diameter series - Servo mounting
SA263 - 30 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm
SAC63 - 63 mm diameter series - Hollow shaft
-
