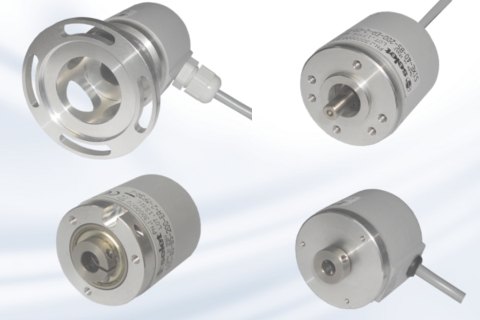

40 mm diameters series

SI040 - 40 mm diameter series - Square flange

  • Flange type: 40 x 40 mm square size
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SI140 - 40 mm diameter series - Servo mounting

  • Flange type: Servo mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SI240 - 40 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm

  • Flange type: Screw mounting, 3 holes at 120° on Ø 20 mm
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIOM40 - 40 mm diameter series - Screw mounting, 3 holes at 120° on Ø 30 mm

  • Flange type: Screw mounting, 3 holes at 120° on Ø 20 mm
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIXE - 40 mm diameter series - Screw mounting

  • Flange type: Screw mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIV40 - 40 mm diameter series - M18x1 mounting

  • Flange type: M18x1 mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIC40 - 40 mm diameter series - Hollow shaft

  • Flange type: Hollow shaft
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIG40 - 40 mm diameter series - Motor flange mounting

  • Flange type: Motor flange mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67
SIAP40 - 40 mm diameter series - Throught shaft

  • Flange type: Throught shaft
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 2500 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
  • Shaft diameter: 4 - 5 - 6 - 8 mm
  • IP protection: IP54 - IP65 - IP67

40 mm diameters series



40 mm diameters series

SI040 - 40 mm diameter series - Square flange
SI140 - 40 mm diameter series - Servo mounting
SI240 - 40 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm
SIOM40 - 40 mm diameter series - Screw mounting, 3 holes at 120° on Ø 30 mm
SIXE - 40 mm diameter series - Screw mounting
SIV40 - 40 mm diameter series - M18x1 mounting
SIC40 - 40 mm diameter series - Hollow shaft
SIG40 - 40 mm diameter series - Motor flange mounting
SIAP40 - 40 mm diameter series - Throught shaft

精确的转速和位置检测，适用于各种应用，例如

  • 异步电机
  • 滑环
  • 包装线
  • 纺织机械和印刷机
