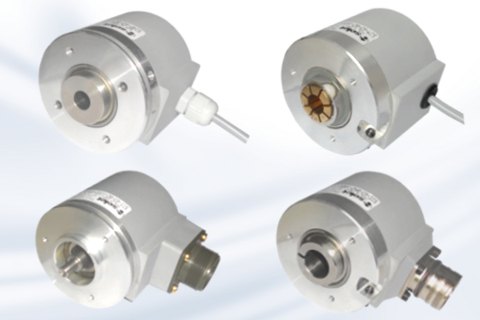

63 mm diameters series

SI063 - 63 mm diameter series - Square flange

  • Flange type: Square flange
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SI163 - 63 mm diameter series - Servo mounting

  • Flange type: Servo mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SI263 - 63 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm

  • Flange type: Screw mounting, 3 holes at 120° on Ø 20 mm
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SIC63 - 63 mm diameter series - Hollow shaft

  • Flange type: Hollow shaft
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SIM63 - 63 mm diameter series - Hollow shaft with auto-centering shaft locking

  • Flange type: Hollow shaft with auto-centering shaft locking
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SIAP63 - 63 mm diameter series - Square flange

  • Flange type: Through shaft
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 mm
  • IP protection: IP54 - IP65 - IP67
SIFR115 - 63 mm diameter series - Round flange direct motor mounting

  • Flange type: Round 115 mm diameter flange direct motor mounting
  • Monodirectional and bidirectional version with and without zero
  • Resolution up to 10.000 pulses
  • Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
  • Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
  • Versions: CA= Straight cable L = 3 m  - CR= Angled cable L = 3 m  - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
  • Shaft diameter: 6 - 8 - 9 - 10 - 11 - 12 mm
  • IP protection: IP54 - IP65 - IP67

63 mm diameters series

SI063 - 63 mm diameter series - Square flange
SI163 - 63 mm diameter series - Servo mounting
SI263 - 63 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm
SIC63 - 63 mm diameter series - Hollow shaft
SIM63 - 63 mm diameter series - Hollow shaft with auto-centering shaft locking
SIAP63 - 63 mm diameter series - Square flange
SIFR115 - 63 mm diameter series - Round flange direct motor mounting

精确的转速和位置检测，适用于各种应用，例如

  • 异步电机
  • 滑环
  • 包装线
  • 纺织机械和印刷机
