90mm直径增量编码器 Bestell-Nr:
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!

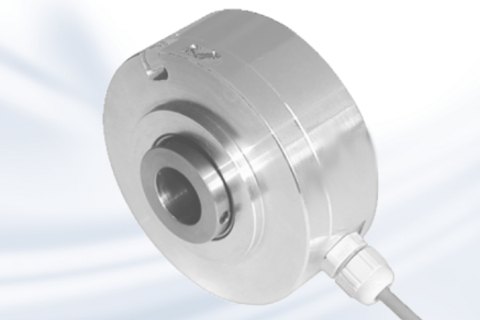

90 mm diameter series
SIAP90 - 90 mm diameter series - Square flange
- Flange type: Through shaft
- Monodirectional and bidirectional version with and without zero
- Resolution up to 10.000 pulses
- Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
- Shaft diameter: 6 - 8 - 9 - 10 - 14 - 15 - 20 mm
- IP protection: IP54 - IP65 - IP67
