INTRAOPTO tecnology高分辨率增量编码器 Bestell-Nr:
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!

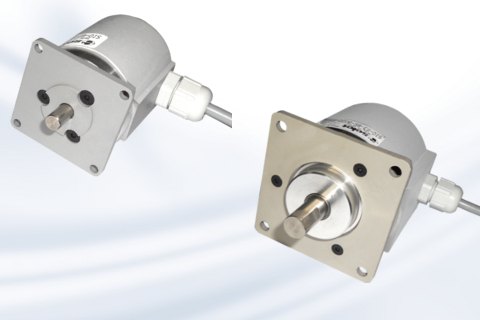

INTRAOPTO tecnology with high resolution series
SI040 INTRA - 40 mm diameter series - Square flange - Resolution up to 25.000 rpm
- Flange type: 40 x 40 mm square size
- Bidirectional version with zero
- Resolution up to 25.000 pulses
- Electronics: E2A = PUSH-PULL - LINE DRIVER, CL = Line driver TTL
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
- Shaft diameter: 4 - 5 - 6 - 8 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Square flange
- Bidirectional version with zero
- Resolution up to 100.000 pulses
- Electronics: E2A = PUSH-PULL - LINE DRIVER, CL = Line driver TTL
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
- Shaft diameter: 6 - 8 - 9 - 10 mm
- IP protection: IP54 - IP65 - IP67
INTRAOPTO tecnology with high resolution series
SI040 INTRA - 40 mm diameter series - Square flange - Resolution up to 25.000 rpm
SI063 INTRA - 63 mm diameter series - Square flange - Resolution up to 100.000 rpm
