Descripiton

The MCE 940 forms a powerful Supervisory, Control and Data
Acquisition software (SCADA) intended specially for power
distribution applications. The MCE 940 comprises functions of
supervision, data collecting, control, data storage, analysis and
graphical display by using single-line diagrams, interactive
blocks and data charts. The MCE 940 is not limited in size of
application and it can be used for any control level; from control
of a single MV substation to control of the whole utility network.
Due to its unique possibilities of expansion and customization it
can be used for virtually any application.

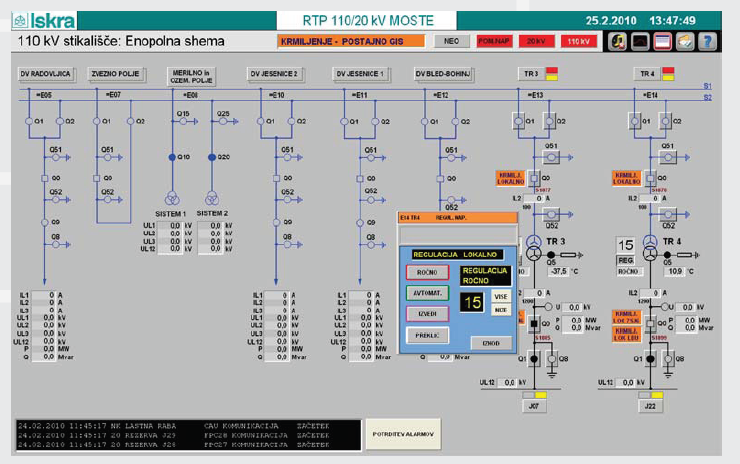

Using Windows® based graphic screens the MCE 940 displays a
real-time condition of substation, actual measurements and it
helps the operator to make appropriate decisions in any given
situation. Commands with integrated interlocking additionally
prevent the operator from executing false commands.
The MCE 940 is a sub-module of the NEO 3000 substation control
and protection system that shares the usual qualities of
customization and open architecture options. These qualities
offer satisfaction through possible further expansion and
additional improvement throughout entire lifetime of the
system.

Function

Real-time display of the status and analog measurements
of the power system
Sequence control
Tags (elements with stored value after any reloading of the
system)
Storing of historical data in the relational archive database
Off-normal list
Maintenance mode for single points or entire RTUs (silencing
alarms, command prevention)
Support for Geographic Information System (GIS)
Commands with integrated interlocking
Alarming
Trending
Equipment statistics (number of breaker operations with
maintenance alarming)
Events in high time-resolution (fault events, analog and digital)
Energy metering
Operational statistics of protection relays and circuit
breakers
Automatic print-out of events
Lists of currently present and unacknowledged alarms
List of inactive unacknowledged alarms
Reports and print-outs at operators request
User based security
User control areas
Status of LAN devices (servers, printers switches …)
Operator notes with integrated MS Word and MS Excel
Simple integration of additional functions

Features

Real-Time Process of Monitoring and
Control
Distributed Client/Server Architecture
The MCE 940 is designed for both small
stand-alone and networked applications
Shares data with Oracle, SQL Server,
Access and other SQL based relational
databases
Security system enables control of
access to data and applications
