60mm宽金属限位开关 Bestell-Nr:
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!

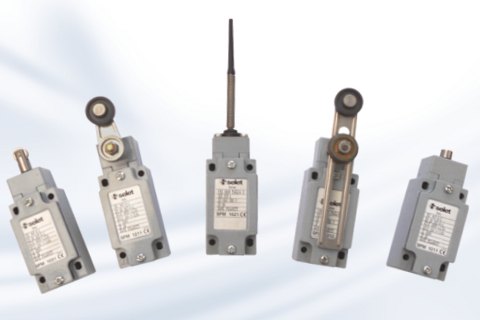

Limit switches with metal body, 66 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM20xx - 66 x 77 x 43 mm mechanical limit with plunger- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM201x = Plunger, SFM202x = Plunger with ball bearing, SFM203x = Roller plunger, SFM204x = Side plunger, SFM205x = Side plunger with vertical roller, SFM206x = Side plunger with horizontal roller
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2012)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM211x = One-way lever with plastic roller, SFM212x = One-way lever with steel roller, SFM213x = One-way lever with roller and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2112)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM221x = Lever with plastic wheel, SFM222x = Lever with steel wheel, SFM223x = Lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2212)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM231x = Adjustable lever with plastic wheel, SFM232x = Adjustable lever with steel wheel, SFM233x = Adjustable lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2312)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM241x = Flexible lever plastic, SFM242x = Flexible lever
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2412)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM251x = Lever with adjustable steel rod, SFM252x = Lever with adjustable plastic rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2512)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM261x = Multi-direction flexible rod, SFM262x = Multi-direction flexible plastic rod, SFM263x = Multi-direction flexible spring rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2612)
Limit switches with metal body, 66 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM20xx - 66 x 77 x 43 mm mechanical limit with plunger
SFM21xx - 66 x 77 x 43 mm mechanical limit switches with one-way lever with roller
SFM22xx - 66 x 77 x 43 mm mechanical limit swithces with lever with wheel
SFM23xx - 66 x 77 x 43 mm mechanical limit swithces with adjustable lever with wheel
SFM24xx - 66 x 77 x 43 mm mechanical limit swithces with flexible lever
SFM25xx - 66 x 77 x 43 mm mechanical limit swithces with lever adjustable rod
SFM26xx - 66 x 77 x 43 mm mechanical limit swithces with multi-direction flexible lever
应用领域：
- 包装机械，例如食品饮料及医药机械
- 物流仓储和输送线，例如包裹和周转箱检测
- 机械制造OEM，机床、陶瓷机械
- 门禁系统和地铁闸机出入口，例如行人、箱包
- 快速消费品行业
- 生产线上食品饮料的检测
- 灌装线透明PET瓶检测
- 物流输送线上托盘和货叉定位
- 电子/汽车装配线零部件检测
- 包装/塑料/玻璃/陶瓷机械
-
在物体定位上的检测应用：
- 存储/输送技术
- 物料搬运技术
- 包装行业
- 交通运输行业
- 汽车行业
- 木材工业
