MFT 4000 CE & IS

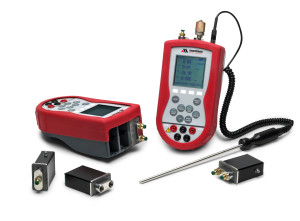

The MFT 4000 Calibrator is a base unit for calibration work with selected NIST traceable sensor modules & integral voltage/current meter. The MFT 4010 Calibrator with HART® is a base unit for modules and full device specific HART® communications. Quick Cal displays HART® PV and AO along with MFT’s NIST traceable measurements. User can identify needed trim(s) and access the trim function(s) from same display. Smart Trim allows selection of analog or digital trims without navigating through menu trees. Documenting included. Documenting memory stores up to 200 HART® configuration files and over 100 calibration results (as-found & as-left data [up to 21 points each], time/date info, tag). Communicate with PC via DB-9 connector.

Available modules include differential, gauge, vacuum and absolute pressure as well as temperature, and voltage/current. A voltage and current meter is integral to the base unit. All HART® field devices can be configured, polled, and trimmed using HART® communications. Device Specific commands for supported devices are included with the MFT

Standard Features Include

  • HART® menu Home key
  • 13-line, 128 x 128 graphic, backlit display
  • 60 hours battery life (w/o backlight)
  • Accommodates three modules at any time

Typical Applications

  • Commission devices
  • Reconfiguration for process changes
  • Troubleshoot devices with HART©

Ease of Use

  • Quick start up and connect
  • Review / Edit on the fly
  • Document and store 200 configurations

Model numbers

  • MFT 4000-11-1-00 CE
  • MFT 4000-11-1-01 CE & IS
  • MFT 4010-11-1-00 HART, CE
  • MFT 4010-11-1-01 HART, CE, IS
