Sight Feed Bubblers Bestell-Nr:
Anfrage sendungBitte füllen sie die Details und sagen Sie mir das Ursprungsland, die Markenname und alle Informationen, die Sie schon erhalten. Das wird uns helfen, schnell zu angeboten. Vielen dank!

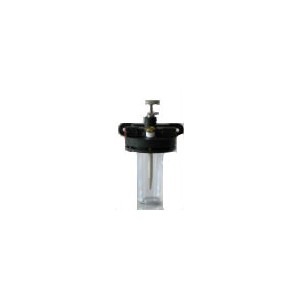

Sight Feed Bubblers
Bubblers provide a visual indication of flow by showing air or gas bubbles discharging from a dip tube immersed in a liquid in a transparent bowl. The bubble rate is controlled by a stainless steel needle valve in the head casting. Bubblers and Line Traps available with heavy wall transparent bowls made of either plastic or glass. They are rated at 100 PSI and 50 PSI respectively. Either a ring type or strap type configuration is available for securing the bowl to the head.
Lead Time
- Typical Deliver: Stock - 2 weeks
- *Large Orders May Require a Longer Lead Time
931R5
- Product Number: Z931R5-BG
- Ring Type, Glass Bowl, Brass
- Working Pressure: 50 psi
931R5
- Product Number: Z931R5-CG
- Ring Type, Glass Bowl, Ductile Iron
- Working Pressure: 50 psi
931R10
- Product Number: Z931R10-BP
- Ring Type, Plastic Bowl, Brass
- Working Pressure: 100 psi
931R10
- Product Number: Z931R10-CP
- Ring Type, Plastic Bowl, Ductile Iron
- Working Pressure: 100 psi
931S5
- Product Number: Z931S5-CG
- Strap Type, Glass Bowl, Ductile Iron
- Working Pressure: 50 psi
931S10
- Product Number: Z931S10-CP
- Strap Type, Plastic Bowl, Ductile Iron
- Working Pressure: 100 psi
