Electronic Measurement Unit

Electronic Measurement Unit

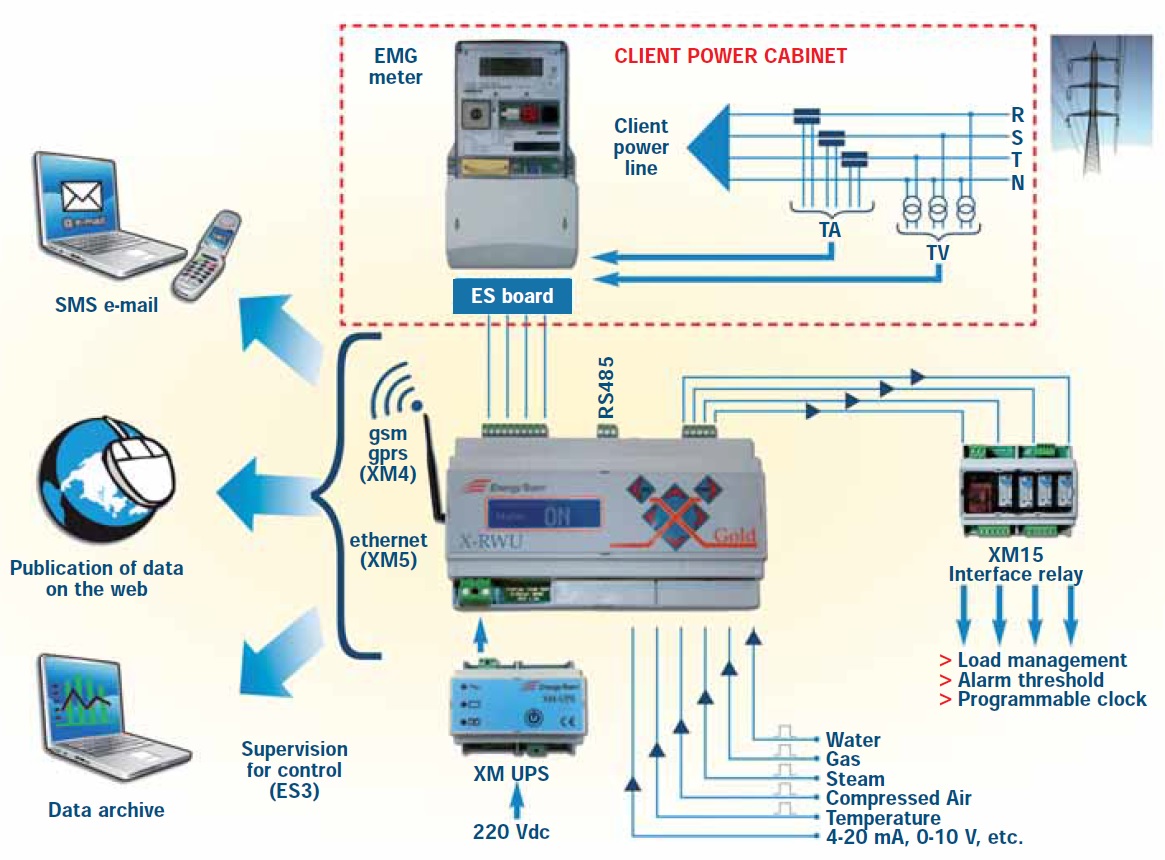

X-RWU GOLD is a system designed for monitoring energy consumption detected by the Electronic Measurement Unit (GME). Through connection to the ES (Signal emission) interface inserted in the meter, it is possible to acquire information to detect the effective energy consumption at your location.



In particular, the system receives from the GME, at a pulsed level, the following information:

  • Active power acquired/delivered (A+ A-)
  • Reactive power acquired/delivered (R+ R-)
  • Band signals (also used for synchronism)
  • The cosφ value of the system is also calculated indirectly.

The 4 outputs are completely manageable to:

  • activate alarms upon reaching a certain level ofmeasurements acquired
  • create load management logic linked to exceedingcontractual consumption. This progressively controls the opening or closing of the loads based on a manageable priority list (XM 15 XM 18)
  • manage the start-up or shut-down of the utilities based on
  • freely programmable clocks (option XM7)
